Продукт No.303026
Дънна платка ASROCK Z690 PHANTOM GAMING 4на ниска цена с бърза доставка
изчерпан

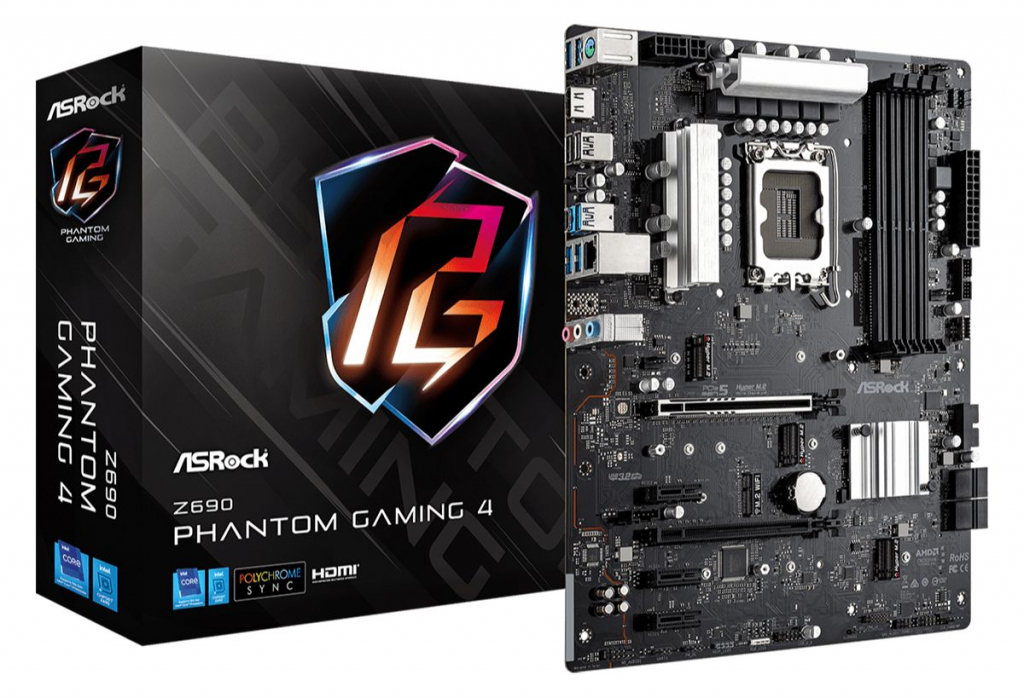

Дънна платка ASROCK Z690 PHANTOM GAMING 4

Продукт № 303026
Категория: Дънни платки
Производител:
Модел:
Z690 PHANTOM GAMING 4
Чипсет:Intel Z690
Брой RAM слотове:4 бр.
Поддържана памет:DDR4
Процесорен слот:LGA1700
Наличност:ПРОДУКТЪТ НЕ Е НАЛИЧЕН
314.90 ЛВ

ASROCK Z690 PHANTOM GAMING 4


Графика:- Intel® Xe Graphics Architecture (Gen 12); - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port
CPU's supported:- Supports 12th Gen Intel® Core™ Processors (LGA1700); - 9 Power Phase design; - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset:- Intel® Z690
Слотове:
  • - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*; - 3 x PCIe Gen3x1 Slots; - Supports AMD CrossFire™; - 1 x M.2 Socket (Key E)
  • supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT
Storage:
  • - 4 x SATA3 6.0 Gb/s Connectors; - 1 x Hyper M.2 Socket (M2_1
  • Key M)
  • supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2
  • Key M)
  • supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_3
  • Key M)
  • supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
Тип памет:
  • - Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - Supports DDR4 non-ECC
  • un-buffered memory up to 5000+(OC)*; - Supports ECC UDIMM memory modules (operate in non-ECC mode); - Max. capacity of system memory: 128GB; - Supports Intel® Extreme Memory Profile (XMP) 2.0

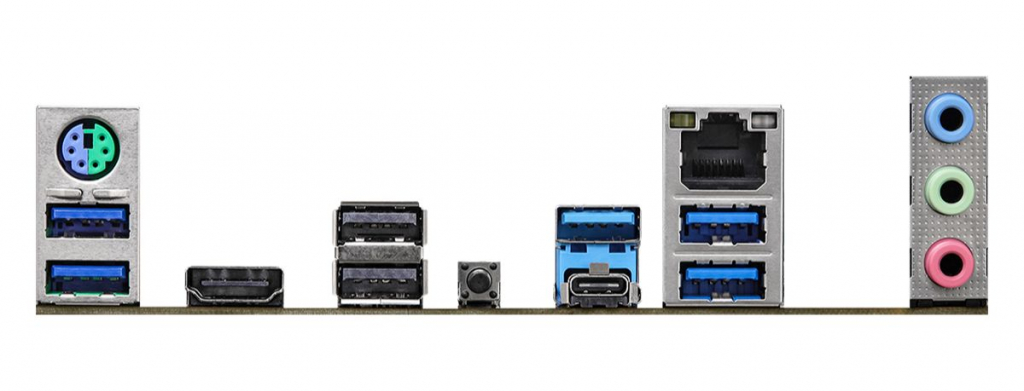

I/O:- 3 x Antenna Mounting Points; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection); - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 2 x USB 2.0 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors:- 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection); - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Audio:- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Supports Surge Protection; - Nahimic Audio
LAN:- Gigabit LAN 10/100/1000 Mb/s; - Giga PHY Intel® I219V; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports UEFI PXE
BIOS:
  • - 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - ACPI 6.0 Compliant wake up events; - SMBIOS 2.7 Support; - CPU Core/Cache
  • CPU GT
  • DRAM
  • VCCIN AUX
  • +1.05V PROC
  • +1.8V PROC
  • +0.82V PCH
  • +1.05V PCH Voltage Multi-adjustment
Form Factor:
  • - ATX Form Factor: 12.0-in x 9.6-in
  • 30.5 cm x 24.4 cm; - Solid Capacitor design
Операционна система:- Microsoft® Windows® 10 64-bit / 11 64-bit
Гаранция:36 Месеца
