Продукт No.303020
Дънна платка ASROCK B550 PHANTOM GAMING-ITXна ниска цена с бърза доставка
изчерпан

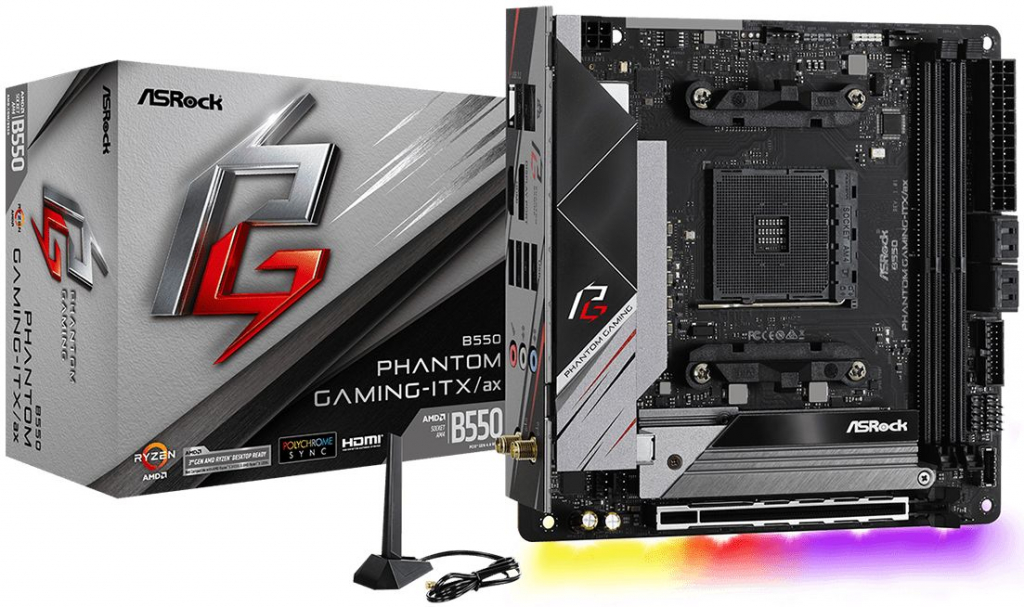

Дънна платка ASROCK B550 PHANTOM GAMING-ITX

Продукт № 303020
Категория: Дънни платки
Производител:
Модел:
B550 PHANTOM GAMING-ITX/AX
Чипсет:AMD B550
Брой RAM слотове:2 бр.
Процесорен слот:AM4
Поддържана памет:DDR4
Гаранция:
36 месеца
Наличност:ПРОДУКТЪТ НЕ Е НАЛИЧЕН
386.90 ЛВ

ASROCK B550 PHANTOM GAMING-ITX


Графика:
  • - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*; - DirectX 12
  • Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz; - Supports Auto Lip Sync
  • Deep Color (12bpc)
  • xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports***; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports; - Supports Microsoft® PlayReady
CPU's supported:
  • - Supports AMD AM4 Socket Ryzen™ 3000
  • 3000 G-Series
  • 4000 G-Series
  • 5000 and 5000 G-Series Desktop Processors*; - Digi Power design; - 8 Power Phase design
Chipset:- AMD B550
Слотове:AMD Ryzen series CPUs (Vermeer and Matisse); - 1 x PCI Express x16 Slot (PCIE1: Gen4x16 mode)*; AMD Ryzen series APUs (Cezanne and Renoir); - 1 x PCI Express x16 Slot (PCIE1: Gen3x16 mode)*; AMD Ryzen series APUs (Picasso); - 1 x PCI Express x16 Slot (PCIE1: Gen3x8 mode)*; - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O); - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage:
  • - 4 x SATA3 6.0 Gb/s Connectors
  • support RAID (RAID 0
  • RAID 1 and RAID 10)
  • NCQ
  • AHCI and Hot Plug; - 1 x Hyper M.2 Socket (M2_1)
  • supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer
  • Matisse) or Gen3x4 (32 Gb/s) (with Cezanne
  • Renoir and Picasso)*; - 1 x Ultra M.2 Socket
  • supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
Тип памет:
  • - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Vermeer) support DDR4 5100+(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC
  • un-buffered memory*; - AMD Ryzen series CPUs (Matisse) support DDR4 5100+(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC
  • un-buffered memory*; - AMD Ryzen series APUs (Cezanne) support DDR4 5400+(OC) / 5300(OC) / 5200(OC) / 5100(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC)
I/O:- 2 x Antenna Ports; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors:- 1 x RGB LED Header*; - 1 x Addressable LED Header**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****; - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector); - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector (15μ Gold Audio Connector); - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection); - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)******
Audio:- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - 120dB SNR DAC with Differential Amplifier; - Pure Power-In; - Direct Drive Technology; - PCB Isolate Shielding; - Impedance Sensing on Rear Out port; - Individual PCB Layers for R/L Audio Channel; - 15μ Gold Audio Connector; - Nahimic Audio
LAN:- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - GigaLAN Intel® I225V; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
BIOS:
  • - 256Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU
  • CPU VDDCR_SOC
  • DRAM
  • VPPM
  • Chipset 1.05V
  • 2.50V
  • +1.8V
  • VDDP Voltage Multi-adjustment
Form Factor:
  • - Mini-ITX Form Factor: 6.7-in x 6.7-in
  • 17.0 cm x 17.0 cm; - 8 Layer PCB; - 2oz Copper PCB
Операционна система:- Microsoft® Windows® 10 64-bit / 11 64-bit
Други:- Intel® 802.11ax WiFi Module; - Supports IEEE 802.11a/b/g/n/ax; - Supports Dual-Band (2.4/5 GHz); - Supports WiFi6 802.11ax (2.4Gbps); - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology; - Supports Bluetooth 5.2 + High speed class II; - Supports MU-MIMO
Гаранция:36 Месеца
