Продукт No.274172
Дънна платка ASROCK A520M-HDV -AM4на ниска цена с бърза доставка

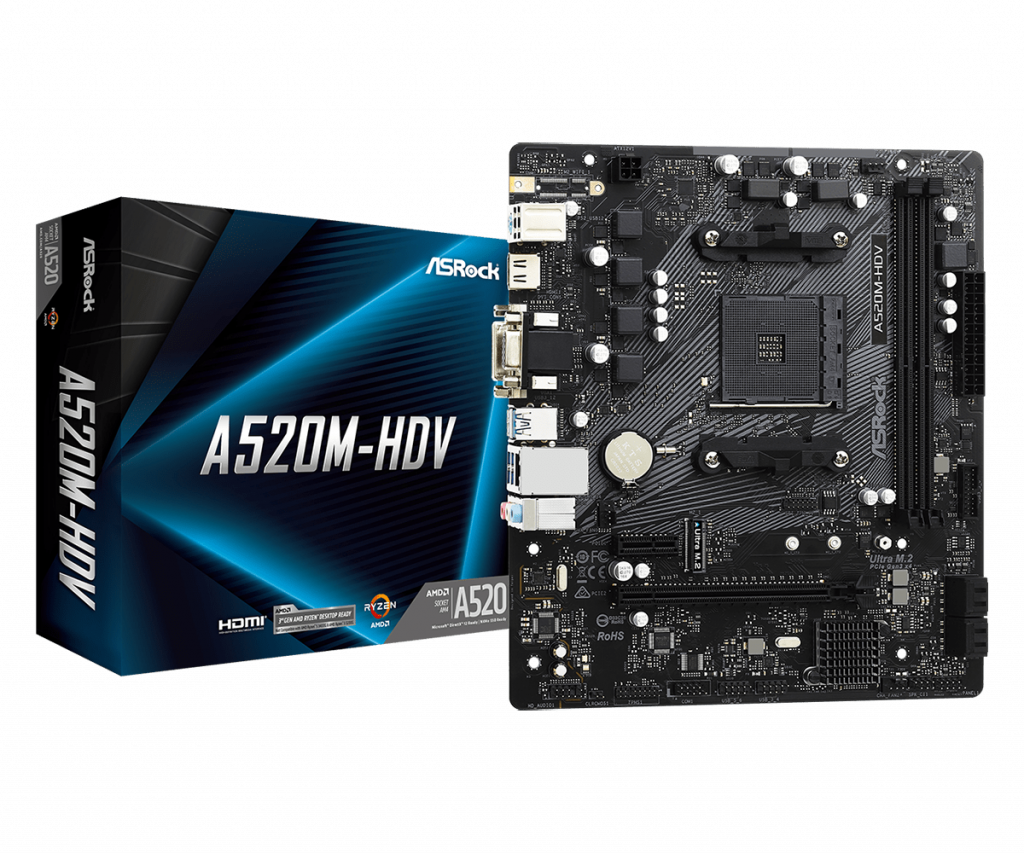

Дънна платка ASROCK A520M-HDV -AM4

Продукт № 274172
Категория: Дънни платки
Производител:
Чипсет:AMD A520
Брой RAM слотове:2 бр.
Поддържана памет:DDR4
Процесорен слот:AM4
Гаранция:
36 месеца
Наличност:ДА
На склад в: София

120.90 ЛВ
В кошницатa има:
−
0
 бр.
+

ASROCK A520M-HDV -AM4


Графика:
  • - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12
  • Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Three graphics output options: D-Sub
  • DVI-D and HDMI; - Supports Triple Monitor; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync
  • Deep Color (12bpc)
  • xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; - Supports Microsoft® PlayReady
CPU's supported:
  • - Supports AMD AM4 Socket Ryzen™ 3000
  • 4000 G-Series and 5000 Series Desktop Processors* - 6 Power Phase design
Chipset:- AMD A520
Слотове:- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*; - 1 x PCI Express 3.0 x1 Slot
Storage:
  • - 4 x SATA3 6.0 Gb/s Connectors
  • support RAID (RAID 0
  • RAID 1 and RAID 10)
  • NCQ
  • AHCI and Hot Plug; - 1 x Ultra M.2 Socket
  • supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
Тип памет:
  • - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC
  • un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC
  • un-buffered memory*; - Max. capacity of system memory: 64GB*; - Supports Extreme Memory Profile (XMP) memory modules; - 15μ Gold Contact in DIMM Slots
I/O:- 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 2 x USB 2.0 Ports (Supports ESD Protection); - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors:- 1 x SPI TPM Header; - 1 x COM Port Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x CPU Fan Connector (4-pin)*; - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**; - 1 x 24 pin ATX Power Connector; - 1 x 4 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio:- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection
LAN:- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
BIOS:
  • - 128Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU
  • CPU VDDCR_SOC
  • DRAM
  • VDDP Voltage Multi-adjustment
Form Factor:
  • - Micro ATX Form Factor: 9.0-in x 7.9-in
  • 23.0 cm x 20.1 cm; - Solid Capacitor design
Операционна система:- Microsoft® Windows® 10 64-bit
Гаранция:36 Месеца
