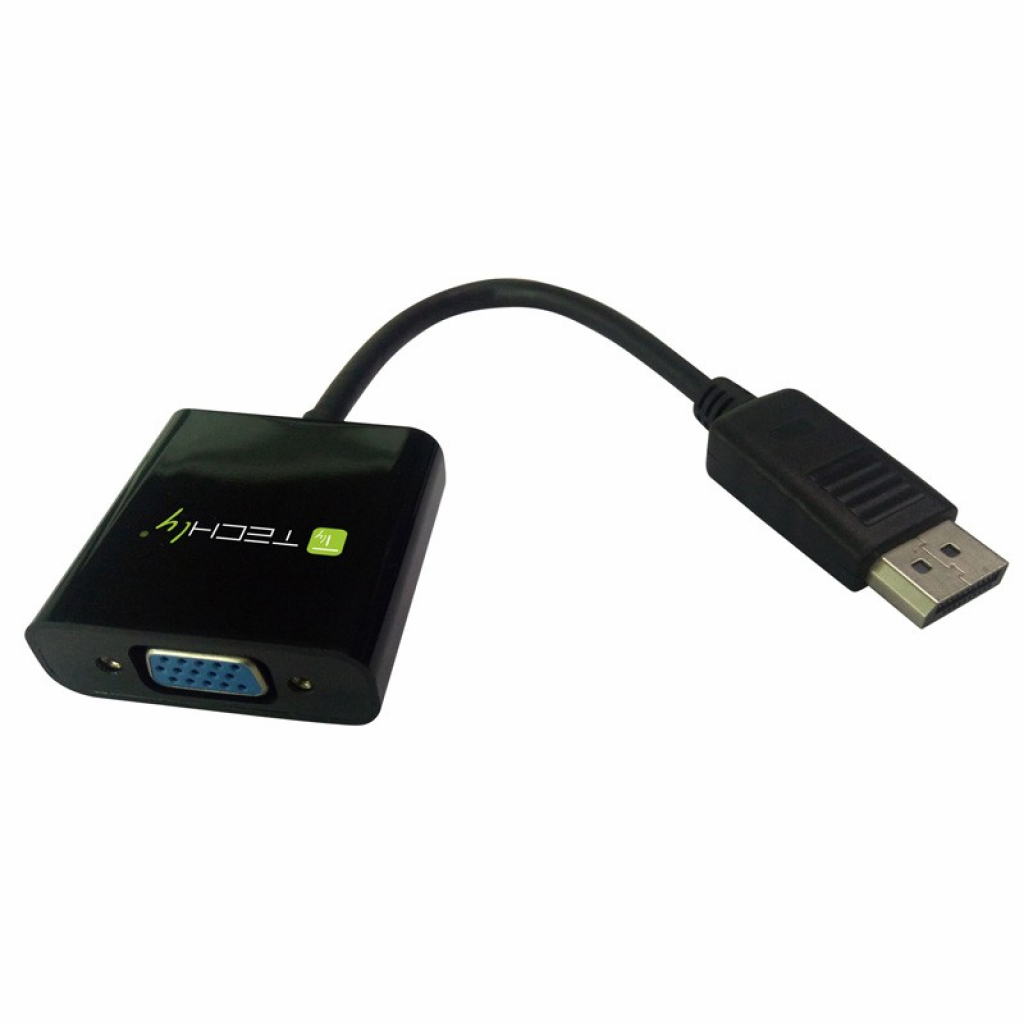

Адаптер Display Port 1.2 мъжки към VGA женски, 0.15 м, черен

Адаптер Display Port 1.2 мъжки към VGA женски, 0.15 м, черен

Signal converter from VGA to DisplayPort 1.2 allows you to interface the next generation DisplayPort based PC and notebook computers with conventional VGA monitor, such as CRT, LCD and projectors.

More and more PC notebook and desktop are switching from one type of traditional analog interface to DisplayPort, the converter facilitates the transaction by offering seamless connectivity between new DisplayPort PC and notebook.

General information

• Compliant with VESA DisplayPort 1.2 standard and is compatible with the previous version 1.1a
• Compatible with VESA Standard and DP v1.3
• 2 lanes of high speed differential input with configurable speed: 2.7Gbps or 1.62Gbps
• Supports Down Spread Spectrum (SSC)
• Supports resolution with pixel rates up to 180MHz
• Supports resolutions up to WQXGA (1920x1200 @ 60HZ, reduced blanking, 24bpp)
• VGA output compliant VESA VSIS V1R2 clock jitter specification
• Stand-by mode with low consumption with automatic detection of connection and disconnection of the monitor
• Speed ​​Control DDC for use with VGA cables longer
• EDID pass-through from PC source to display
• Expanded Spectrum (de-spreading) for EMI reduction
• Operation at low power consumption - 485mW active, 12mW in standby mode
• Maximum Single Link Range. 1920 x 1200, 1080p
• Vertical Frequency Range: 50/60 Hz
• Video formats supported: VGA up to 1920 x 1200
• Video Bandwidth: 180MHz
• Cable Converter V.1.2 DisplayPort to VGA

Technical specifications

• Typology: Video
• Connector A Type: DisplayPort 20-pin
• format A connector: male
• Connector B Type: VGA
• format B connector: female
• Headphone connectors: Yes
• Cable shielding: No
• Cable size (AWG): No
• Color: Black
• Length: 0.15 meters
