Антена/Кабел CPE за външен монтаж 2.4GHz 802.11n 300Mbps с вградена 14dBi антена

CPE за външен монтаж 2.4GHz 802.11n 300Mbps с вградена 14dBi антена

Cost-effective Wireless Solution with Superior Performance

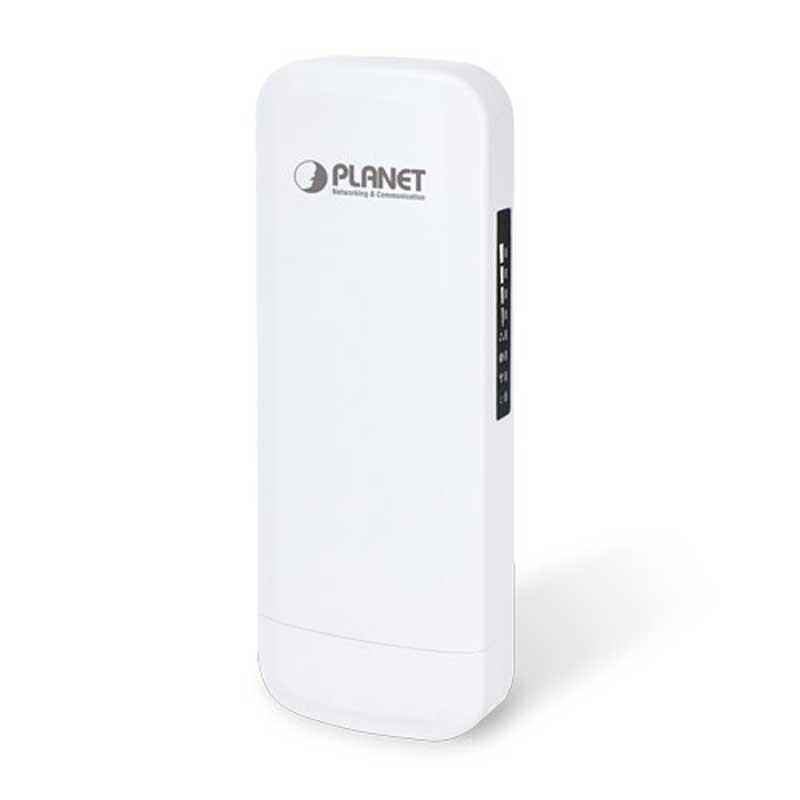

PLANET WBS-202N 802.11n 300Mbps Outdoor Wireless CPE offers a better range and excellent throughput than those of the traditional 802.11g wireless device. Via the embedded 14dBi dual-polarization (vertical and horizontal) directional antenna, the WBS-202N provides good diversity coverage and high transmitting power, thus heightening the performance of a long-distance, outdoor connectivity even when the environment is flooded with many 2.4GHz wireless devices.

Designed for Heavy Data Transmission Traffic

With larger memory capacity and faster CPU clock speed, the WBS-202N is capable of withstanding high frequency of user access and heavy data transmission traffic in the densely-populated area. To have a suitable coverage threshold, the product can flexibly control the client access, efficiently limit unreachable clients and retain bandwidth for authorized users. To provide maximum performance, the WBS-202N can implement up to 8 operation modes where a multitude of applications in communities, warehouses, campuses, harbors, etc. can be made.

Multiple SSIDs with VLAN Tagging

The WBS-202N supports WPA/WPA2, and the 802.1X RADIUS authentication to secure the wireless connection. Besides, the supported IEEE 802.1Q VLAN allows multiple VLAN tags to be mapped to multiple SSIDs to distinguish the wireless access. This makes it possible for the WBS-202N to work with managed Ethernet switches to have VLANs assigned to a different access level and authority.

Flexible and Reliable Outdoor Characteristics

The WBS-202N is definitely suitable for wireless IP surveillance, and bridge link of building to building and backbone of public service. Additionally, the self-healing capability keeps connection alive all the time. With the IP55-rated outdoor enclosure, the WBS-202N can perform normally under rigorous weather conditions, meaning it can be installed in any harsh, outdoor environments. With the flexible DC input or Power over Ethernet (PoE) option, the WBS-202N can be easily installed depending on the environmental condition.

3 Simple Steps to Set Up WDS

Without needing to enter the Web interface for configuration, the WBS-202N needs three simple steps to establish the WDS PtP connection without any difficulty. By just clicking the Pair button on the WBS-202N and within 2 minutes, you can connect two WBS-202Ns without complicated configuration.

Advanced Security and Rigorous Authentication

The WBS-202N supports WPA/WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism and 802.1X RADIUS authentication, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established.

Optimized Efficiency in AP Management

The brand-new GUI configuration wizard helps the system administrator easily set up the WBS-202N step by step. Besides, the built-in Wi-Fi analyzer provides real-time channel utilization to prevent channel overlapping to assure greater performance. With the automatic transmission power mechanism, distance control and scheduling reboot setting, the WBS-202N is easier for the administrator to deploy and manage without on-site maintenance. Moreover, you can simply install PLANET AP controller software, SAPC (Smart AP Control), to deliver wireless profiles to multiple APs simultaneously, thus making the central management simple.

Reliable and Stable Outdoor Wireless Solution

The WBS-202N is a cost-effective outdoor wireless solution for widely open space applications. Itprovides outdoor wireless connectivity for CPE users or bridging across long-ranging connection between suburban/rural areas through the 2.4GHz frequency band. With the built-in 14dBi dual-polarization directional antenna, the WBS-202N brings higher performance and longer distance of wireless connection. The WBS-202N provides high output power with multiply-adjustable Tx controller, which allows CPE users to easily install and adjust the suitable value in appropriate locations. When connecting with the WBS-202N, the system integrator is able to expand a reliable wireless connection from indoors to outdoors.
