Mini-ITX, Intel Avoton C2550 Quad-Core Processor, DDR3-4 UDIMMs, 4xSATA 3G, 8xSATA 6G, 2*i210xGLAN, IPMI

DDR3 1600/1333 Dual-channel Max. 64GB UDIMM; 2 SATA3 6.0Gbps, 4 SATA2 3.0Gbps by C2550; 4 x SATA3 6.0 Gb/s by Marvell SE9230, 2 x SATA3 6.0 Gb/s by Marvell SE9172; Dual Intel i210 Gigabit LAN ports (with Teaming function); 3 x USB 2.0 ports (2 rear ports
MB Physical Status Form Factor:- Mini ITX Dimensions:- 6.7'' x 6.7'' (17.02 cm x17.02 cm) Processor System CPU:- Intel^® Quad-Core Avoton C2550 Processor Socket:- FCBGA1283 SOC System Memory Capacity:- 4 x 240-pin DDR3 DIMM slots
- Support up to 64GB DDR3 UDIMM Type:- Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC/non-ECC Unbuffered UDIMM Voltage:- 1.5V, 1.35V Expansion Slot PCIe 2.0 x 8:- 1 slot (x8 mode) Storage SATA Controller:- Intel^® C2550 : 2 x SATA3 6.0 Gb/s, 4 x SATA2 3.0 Gb/s Additional Storage Controller:- Marvell SE9172: 2 x SATA3 6.0 Gb/s, support RAID 0, 1
- Marvell SE9230: 4 x SATA3 6.0 Gb/s, support RAID 0, 1, 10 (To disable Marvell SE 9230 HW Raid, please click here) Ethernet Interface:- Gigabit LAN 10/100/1000 Mb/s LAN Controller:- 2 x Intel^® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE Management BMC Controller:- ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support IPMI Dedicated LAN:- 1 x Realtek RTL8211E for dedicated management LAN Features:- Watch Dog

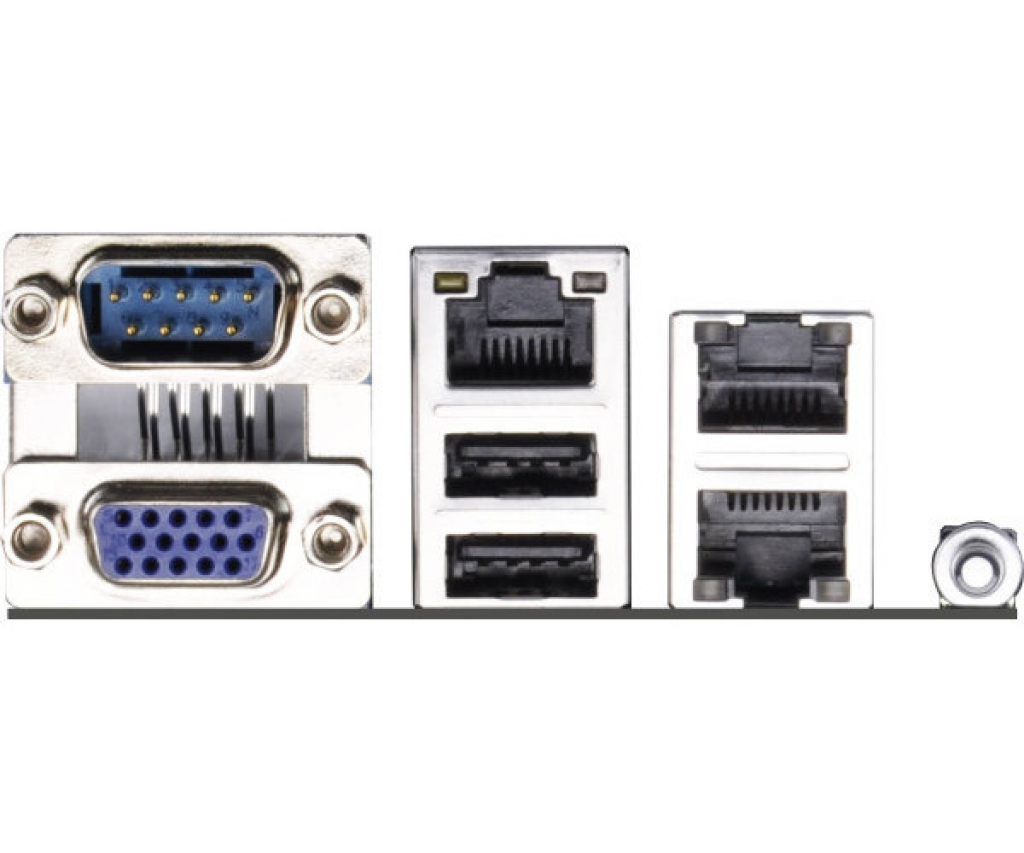

- NMI Graphics Controller:- ASPEED AST2300 VRAM:- DDR3 16MB Output:- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Rear Panel I/O VGA Port:- D-sub x 1 USB 2.0 Port:- 2 Lan Port:- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port:- 1 (COM1) UID Button/UID LED:- 1 Internal Connector Auxiliary Panel Header:- 1 (include chassis intrusion, location button & LED, front LAN LED) IPMB Header:- 1 Fan Header:- 6 x 4-pin ATX Power:- 1 (24-pin) USB 2.0 Header:- 1 (support 1 via headers or 2 via headers controlled by USB_SEL1 and USB_SEL2 jumper) Front Panel:- 1 System BIOS BIOS Type:- 64Mb AMI UEFI Legal BIOS BIOS Features:- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash Hardware Monitor Temperature:- CPU Temperature Sensing
- Motherboard Temperature Sensing Fan:- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage:- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, +1.1V,+1.0V, +BAT, 3VSB, 5VSB Support OS OS:Microsoft Windows
- Server 2008 R2 (x64)
- Server 2012 (x64)
Linux
- RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- FreeBSD 9.1 (x32/x64)
- Fedora core 18 (x64)
- Ubuntu 12.04/12.10 (x64)
Virtual
- VMWare ESXi 5.1 (Marvell SE9230 and Marvell SE9172 has no driver can support VMWare) Environment Temperature:- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
* Install a CPU Fan when the airflow through the heatsink is below 2CFM.
