| Категория: | Компютри All-in-one |
| Производител: | |
1511.46 ЛВ
| ELO TouchPC формат: | Тъчскрийн Десктоп |
| ELO Touch тъчскрийн технология: | iTouch - Акустична |
| ELO TouchPC Процесор: |
|
| ELO TouchPC Чипсет: | Intel 945GSE Express |
| ELO TouchPC RAM: | 2GB DDR2 SODIMM on 1 of 1 slot |
| ELO TouchPC HDD: | 320GB 2.5" SATA HDD |
| ELO TouchPC RS232 Серийни портове: | 2 x RS-232 serial |
| ELO TouchPC USB портове: | 4 x USB 2.0 |
| ELO TouchPC Ethernet: | 1 x LAN RJ45 |
| ELO TouchPC Display: |
|
| ELO TouchPC Операционна система: | Без инсталирана операционна система (No OS) |
| ELO TouchPC Гаранция: | 12 месеца |

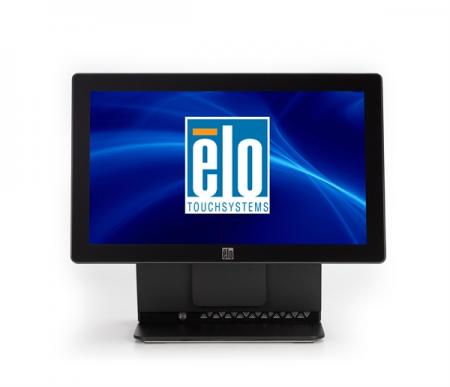

Elo Touch Solutions Тъчскрийн компютър All-in-One
ESY15E1-8UWB-0-ZB-ST-NO-BK-2GB, ревизия B,
15.6", Desktop, без операционна система
*Уникално предложение – бюджетен тъч компютър без нищо излишно; Цялостна система проектирана за POS приложения
*Лъскав компактен дизайн , който пести място и гарантира стил
*Ултратънък дисплей с LED подсветка, много компактно тяло и стойка, тегло едва 2.8 кг
*Стабилна стойка ; отвори за завинтване към маса/бюро гарантират допълнителна сигурност и устойчивост
Техническа спецификация:
Гаранция на системата: 12 месеца
15E1 Touchcomputer: All-in-One Desktop Touchcomputer
The Elo Touch Solutions 15E1 E-Series touchcomputer is an elegant, retail-hardened touch solution with a small footprint, developed to fit into hospitality and retail environments where its thin, sleek look complements the décor and ambiance. The compact, ruggedized touchcomputer is a space-saving all-in-one system that features a 15-inch widescreen zero-bezel touchscreen at the same price and performance as a separate monitor and PC setup. Designed to fit on top of a cash drawer, it can also be wall-or pole-mounted depending on the installation needs.
The 15E1 supports third party peripherals through four (4) USB and two (2) serial ports and has a second VGA output to add a second display for advertising and customer communication. The connections are all nicely hidden from view in the I/O bay, offering a clean, modern look while avoiding incidental disconnection.
The 15E1 touchcomputer is designed for convenient, on-the-spot service: easy access to main components allows easy service and upgrade capability.The 15E1 iTouch touchscreen a new benchmark for surface acoustic wave touch technology that features a sleek glass-to-edge seamless design.
A proprietary innovation, iTouch technology moves all of the touch detection hardware to the backside of the touchscreen. The result is a completely flat, pure-glass touch surface that is elegant and easy to clean. With no moving parts to wear out, touch response is fast, accurate, and drift-free using a finger, gloved hand, or soft stylus. Pure glass construction allows high light transmission without compromising durability or functionality.
| Model | 15E1 |
|---|---|
| Processor | Intel 1.6GHz Atom N270, 512K L2 Cache, 533MHz System Bus |
| Chipset | Intel 945GSE Express |
| Video | Intel GMA 950 |
| BIOS | Phoenix |
| Memory (RAM) | 2GB DDR2 SODIMM on 1 of 1 slot |
| Hard Disk Drive | 320GB 2.5" SATA HDD1 |
(1) ) GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.
| USB Ports | 4 x USB 2.0 |
|---|---|
| Serial Ports | 2 x Native DB9 RS-232 (standard) |
| Ethernet Ports | 1 x LAN RJ45 (Gigabit) |
| Additional Video Out | 2nd VGA out |
| Audio Ports | 1 x 3.5mm line-out |
| Operating Systems Supported | No Operating System Note: System hardware supports 32-bit versions of Microsoft Windows 7, and general 32-bit Linux Operating Systems. Drivers available for download on support pages. |
|---|---|
| Languages | N/A |
| Display | 15.6" diagonal, active matrix TFT LED LCD |
|---|---|
| Aspect Ratio | 16:9 Widescreen |
| Useful Screen Area | Horizontal: 13.6" (344mm) Vertical: 7.6" (193mm) |
| Native (Optimal) Resolution | 1366 × 768 at 60 Hz |
| Colors | 262K (6-bit) |
| Brightness (Typical) | LCD panel: 220 nits iTouch: 198 nits |
| Response Time–Total (Typical) | 16 msec |
Viewing Angle (Typical)  | Horizontal: ±40° or 80° total Vertical: 10°/30° or 40° total |
| Contrast Ratio (Typical) | 400:1 |
| Power Supply | External 12VDC universal-type power supply brick AC input voltage: 100-240VAC Input frequency: 50-60Hz Maximum output power: 50W (Max draw: 57.5W) | |
|---|---|---|
| Power Consumption (Max. without peripherals.) | 38W | |
| Maximum Touchcomputer Dimensions | Width: 15.4" (390mm) Height: 11.0" (280mm) Depth: 9.5" (240mm) | |
|---|---|---|
| Touchcomputer Dimensions (With Stand) | Width: 15.4" (390mm) | |
| Shipping Box Dimensions (W x H x D) | 18.1" (460mm) x 15.8" (400mm) x 9.8" (250mm) | |
| Weight | Actual with stand: 9.9 lb (4.5 kg) Shipping: 15.2 lb (6.9 kg) |
|---|
| Temperature | Operating: 0°C to 35°C (32°F to 95°F) Storage: -30°C to 60°C (-22°F to 140°F) | |
|---|---|---|
| Humidity (Non-Condensing) | Operating: 20%-80% Storage: 5%-95% | |
| Form Factor | Desktop | |
|---|---|---|
| Mounting Options | Wall mount or secure base to tabletop/desktop | |
| Enclosure Color | Black | |
| Real-Time Clock | Replaceable lithium-ion battery for clock | |
| MTBF | 50,000 hours demonstrated | |
| Sealing |
| |
| Other Features |
| |
| Power Cables | North American and European power cable included; other regions available upon request. | |
Windows is a trademark of the Microsoft Corporation.
MTBF (Mean Time Between Failures)
An MTBF measurement is based on a statistical sample and is not intended to predict any one specific unit's reliability; thus MTBF is not, and should not be construed as, a warranty measurement.
Подходящ за: POS приложения - търговски обекти, касови места, ресторанти, хотели, барове, дискотеки, малки магазини, супермаркети, хипермаркети
* Ние се стремим да дадем най-добрата цена. Ако друга фирма Ви предлага по-изгодна оферта от нашата - обадете ни се и ще Ви направим дори още по-добро предложение.
